Some code for this post can be found here.

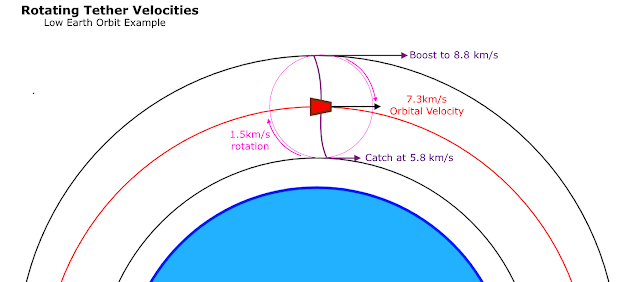

Space tethers take the old, defunct space elevator concept and shorten it. Rockets can fly up to a dangling hook in the sky and then climb to a higher orbit. If the tether rotates, it can act like a catapult, providing a significant boost in a location where providing thrust is expensive. Kurzgesagt has a nice explainer and ToughSF has a great piece explaining the mechanics and some applications.
Tethers make it cheaper to explore space, but how much cheaper? Let’s look at the benefits.
Tether materials and characteristic velocity
The key performance metric for the tether material is the characteristic velocity:
Where T is the tensile strength and rho is the density.
The stronger and lighter the material is, the faster the tether can spin, boosting payloads to higher speeds and saving more fuel. This quickly leads to thinking about exotic materials. Hexagonal boron nitride! Carbon nanotubes! I’m not immune to this kind of speculation, so I’ve added an appendix on the topic. But as I argue in another part of the appendix, we already have good enough materials to make a space tether. The potential gain from studying exotic materials is actually pretty small.
For what it’s worth, I like glass fibers. They’re pretty easy to make, the material can be be sourced in space, they can handle large temperature ranges, and they’re resistant to atomic oxygen environments and UV [1]. They can also get pretty good performance, S-2 glass fibers have a characteristic velocity close to 2 km/s while the best currently available material clocks in at 2.7 km/s.
Now let’s look at why the speed of the tether matters.
Delta V and fuel savings

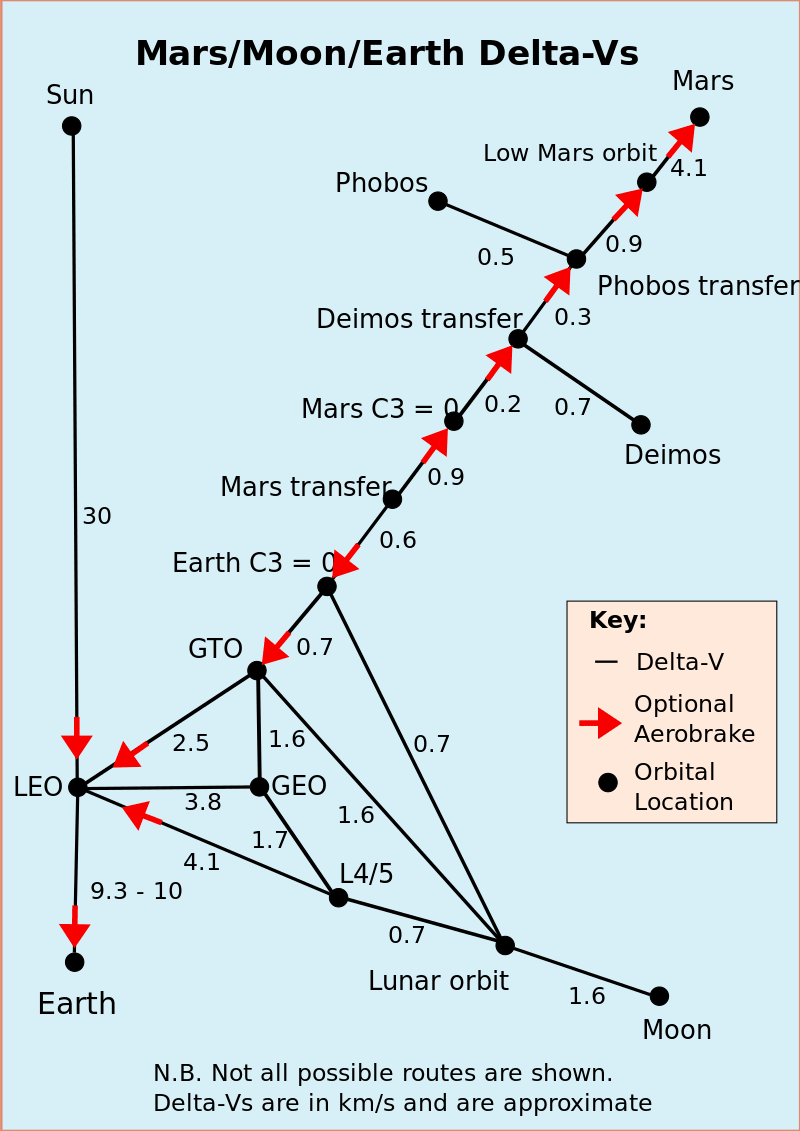

Rockets have to reach a certain speed in order to orbit any object. For low earth orbit, that’s roughly 7.9 km/s; that’s over Mach 20 here on Earth. The change in velocity, or delta V (dV), required to reach orbit is the currency of spaceflight. You can essentially map out the solar system based on the delta V needed to reach different places:
It takes a lot of fuel and engineering to get a payload up to these speeds, making launches expensive [2][3]. Tethers are exciting because they can wait in orbit and offer a rocket some extra delta V. A tether spinning at 1.5 km/s in LEO can grab a rocket moving at 5.8 km/s and release it at 8.8 km/s:
It takes a while to visualize how these work. Staring at this gif helps:
Even a small delta V boost saves a lot of fuel. That’s because the total fuel required for a mission increases exponentially with delta V requirements, as we can see from the Tsiolkovsky rocket equation:
I_sp is the specific impulse of the rocket, g_0 is the gravitational acceleration (often just called *g *in Earth’s gravity), m_i is the total initial mass of the rocket including fuel, and m_p is the payload mass of the rocket after the fuel has been expended. Note that m_p includes both the literal payload and the mass of the rocket itself.
Rearranging to see the exponential:
m_i is the sum of the payload mass m_p and the fuel mass m_x. We can rewrite the above in terms of fuel mass:
By offering a free delta V boost, tethers can save literal tons of fuel. If the tether is spinning at a certain velocity V_t, the tether provides a boost twice that size. You can subtract that boost from the dV requirements for the rocket:
The new initial mass is:
The new fuel requirement is:
As an example, let’s imagine a tether orbiting in LEO [4] at an orbital velocity of 7.5 km/s and spinning at 2 km/s. Our rocket only needs to reach 5.5 km/s in order to be boosted to 9.5 km/s. A Starship mission could involve:
A Superheavy booster that lifts Starship out of the atmosphere and up to a speed of 1.5 km/s
Starship then adds an additional 4 km/s to catch the tether at 5.5 km/s (instead of needing 8 km/s without the tether)
The tether boosts starship up to 9.5 km/s to something like geostationary transfer orbit.
Plugging in these numbers along with the I_sp (380s), m_p (200 t), and m_x (3400 t) for Starship, we get a fuel requirement that is 8.83 times smaller!
As you can see, tethers dramatically lower fuel requirements. But designing one isn’t easy. In the next section, we’ll see how to choose the overall mass and tip speed of a tether to minimize fuel costs for a particular orbital transfer.
Tether mass ratio and fuel costs
For a tether to swing hundreds of tons of mass at high speeds, it needs to be pretty large. The “mass ratio” is the number of times larger the tether needs to be relative to its payload:
Where *s *is a safety factor greater than 1 that we include to make sure the tether always has sufficient mass to handle its payload.
The mass ratio is really the number of launches we need to perform just to get a tether with sufficient mass into orbit, assuming that the “construction launches” have the same size payload as the “production launches” when the tether is acutally in use. This is the key cost of building a tether since we have to invest a bunch of launches just to build it [5]. The total fuel cost for these launches is:
The only difference between this equation and the last one is the term I’ve added to the front. This is the fuel required to get a payload to the tether’s orbit, V_o is the delta V required to get there.
If the tether only performs a fixed number of boosts (L) before it breaks down, we can divide this initial fuel cost up amongst all the future boosts:
That’s the per-launch fuel cost just to build the tether. We know the per-launch fuel requirements from the last section. Putting them together, we get the total fuel cost per mission:
With reusable rockets, fuel is a major cost driver. We want to minimize this overall cost. The equation is pretty messy, but there’s really only one variable here, the velocity V_t that the tether operates at. With a little code, we can find the optimal V_t for a particular delta V required for a particular orbital transfer.
Numerical examples
So let’s plug in some numbers. To keep things simple, let’s assume our rocket is already in LEO so we don’t have to worry about a booster [6]. To boost the rocket to the moon we’re going to need 5.66 km/s of delta V.
Let’s keep all of the parameters the same from the last example and assume that the tether has a characteristic velocity of 2 km/s, can survive for 100 launches and use a safety margin (s) of 2x. However, instead of a tether that rotates at 2 km/s like the last example, we’re going to choose an optimal speed.
Optimizing the equation [7], a tether that spins at 1.74 km/s is ideal. The fuel cost per launch is 293 tonnes, less than half the 713 tonnes we needed originally. The required size of a tether spinning at this speed is 1310 tonnes, which should take roughly 10 launches to build.
As a second example, we can try boosting all the way to Mars for a dV of 9.31 km/s. In this case the ideal tether spins at 2.19 km/s and has a mass of 2560 tonnes. Now, the trip requires 813 tonnes of fuel versus 2230 tonnes without a tether.

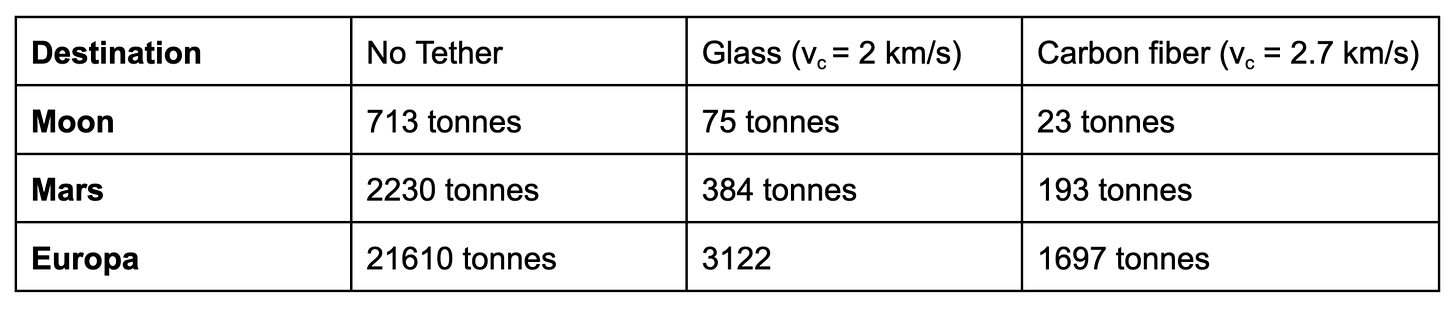

In the table below, I list the fuel requirements before and after a tether for several destinations:
Even short-lived tethers can lower fuel costs 2-4x to nearby destinations. But they really shine for faraway locations like Europa. A carbon fiber tether can reduce fuel costs by almost an order of magnitude.
These gains are pretty nice, but in an era where launch costs have fallen by orders of magnitude, that’s not that much. On top of this, the size of the optimal tether means that we need 10’s to 100’s of launches just to get it constructed. In other words, we’re investing dozens of launches in order to save fuel on the subsequent 100 launches.
The large upfront investment means that tethers will only become viable after we have a mature space industry. We haven’t reused a single Starship yet, so it doesn’t make sense to build a tether anytime soon.
What happens if the tether lasts longer? Say 1000 launches instead of 100. Then we get:
That’s a big difference! By spreading construction costs over more launches, we can lower fuel costs even to nearby destinations by an order of magnitude or more. The optimal tethers here spin much faster, close to double their characteristic velocity, and are much heavier, requiring hundreds of launches to construct. Their size means that these tethers won’t become a reality for a long time, but once they’re built, they will have a dramatic effect on launch costs.
My big takeaway here is that designing a tether for longevity is much more important than using fancy materials. Tethers that are resistant to damage, easy to inspect, and easy to repair in orbit will be of more practical value than ones with slightly higher characteristic velocity.
One last possibility I want to consider is sourcing material for a glass tether from the moon. I’ve estimated that lunar industry could reduce launch costs to LEO by an order of magnitude or more. Let’s factor that in by scaling the initial cost of building a glass tether by 10x [8]. Now we get:
Lunar glass starts looking better than carbon fiber for nearby destinations (low dV), though it still struggles with longer distances and higher velocities.
Conclusion
After staring at tether design for a while, I’ve come to a few realizations:
Tethers help you “skip a level” by bouncing you out of the orbit they’re in. They specialize in a particular transfer you want to make. That’s not always desirable. For instance, there’s not really a way to use tethers to get you from Earth to LEO, since the tether has to be in LEO already. The tether could do a “half-lift” to get you to LEO, but that doesn’t utilize their strengths very well.
Tethers generally want to operate close to their characteristic velocity. Slower and you’re wasting their potential, higher and your tether needs to be huge in order to handle the payload.
Tether repair is a big deal. The longer a material can last, the more it justifies building bigger and faster tethers, which leads to big fuel savings.
Tethers are surprisingly complex for a piece of string. Matching up rocket and tether velocities sometimes requires the tether to be in a weird orbit, and tethers orbit differently than a condensed object would. On top of that, you need to damp vibrations, keep the tether material cool and repair defects in order to get high performance. And they need a regular supply of falling mass to counter the momentum lost from boosting rockets. These considerations mean that tethers have to constantly adapt to their conditions, frequently repositioning and doing maintenance.
Tethers work best at a scale that is currently out of reach for modern launch industry. The fastest way to make them a reality is having a booming space industry and maybe a moon base. Once those things are in place, small tethers can deliver fuel savings, spurring investment in larger tethers and better materials [9].
Large, established tethers can lower costs by 1 to 2 orders of magnitude or more. Farther in the future, tethers on other planets can unlock the entire solar system [10]. Launch industry may adapt by building simpler, cheaper, lower-performance rockets.
These benefits stack on top of sourcing building materials and fuel from the Moon, Mars, or asteroids [11]. For example, a tether in LEO can boost a Starship up to GTO where they can rendezvous with LOX, metals, and nuclear fuel sourced from the moon. Tethers can also be used as atmospheric scoops to gather useful resources from the upper atmosphere. In addition, they can help slow spacecraft for reentry, reducing heat shielding requirements.
I think it’s clear that tethers will usher in another revolution in space travel, though we will have to wait a while for that day to come. The engineering involved is far from simple, making tethers a worthy challenge on our quest to reach space.
Appendix
Tether materials
At an atomic level, we want a material with light atoms that make multiple strong bonds. Single-bonding atoms like hydrogen or fluorine add weight without making connecting bonds, so should be avoided. Instead, carbon-based materials, boron-nitrides, and oxides like glass are promising.
Defects are critical to material strength. Even under loads well below the tensile strength of a material, defects can propagate and eventually weaken it. This creep behavior is important to study and fundamentally limits how many times a tether can be reused. Fracture toughness is another key performance metric.
Materials with no flaws or defects are much, much stronger than everyday materials, so we want to make something at scale that is nearly flawless. This is why like carbon nanotubes end up looking so good in the lab, because the sample is so small there are no defects. But when we scale up production, some nanotubes will inevitably contain defects and be much weaker[12]. If we can make a material without defects at scale, that would lead to higher performance than using an exotic composition.
We could use semiconductor manufacturing techniques to make very pure rods of pure silicon or silicon carbide. Another option is to use chemical vapor deposition and related techniques to make sheets of defect-free silicon dioxide, diamond, or other materials. Data from this page suggests that sheets of silicon dioxide could have a characteristic velocity of 2.88 km/s. Though turning this into a roll-to-roll process at high volume would be a challenge.
Carbon fiber is the best material we have right now. In fact, Toray just made an improved version of their composite that has a characteristic velocity of 2.97 km/s. Can carbon fiber just keep getting better? I think things would move faster of these companies were designing explicitly for space, but the last iteration of their fiber debuted in 1986. I’m not sure how much more we can squeeze out of current methods, but maybe this would improve with scale.
Tether materials operate in a pretty interesting environment. For one, there isn’t much atmosphere in LEO, but what remains is a dilute atomic oxygen environment that’s pretty corrosive. This is another reason why I like glass as a tether material, it resists corrosion[13][14].
For another, heat can’t dissipate quickly in a vacuum. Solar irradiation and repeated mechanical strain will heat up the tether material, which is important because heat lowers the strength of most materials.
It’s possible to use this to our advantage; materials that reflect infrared radiation and radiate heat away effectively (e.g. glass) tend to stay quite cold even under solar illumination. The tether itself can spin in Earth’s orbital plane, minimizing solar irradiation and reducing collisions with atomic oxygen.
Low temperature makes materials like glass stronger by preventing cracks from propagating. This means that glass fibers can be even stronger than we’re used to on Earth. We can push this further by actively cooling the fibers using liquid nitrogen sourced from the upper atmosphere[15]. Under these conditions, glass fibers could exceed characteristic velocities of 2.6 km/s. Perhaps with even purer glass fibers and low temperatures, they could get close to their theoretical strength, achieving 4 km/s characteristic velocity[16]. Cooling carbon fibers will also probably help, but I’m not sure how much.
Why tether material doesn’t matter too much
Despite the exciting research opportunities above, I’ve become less interested in tether material research of late. For one, we haven’t seen much progress in finding strong materials that we can mass produce. Our current best candidate is Toray 1200G carbon fiber with a characteristic velocity of 2.97 km/s and we haven’t seen a new contender recently. That’s great and all, but boring glass fiber has a characteristic velocity of roughly 2 km/s and cooling can get that up to 3 km/s or higher.
Is it really worth it to make a tether out of something fancy when you can already get pretty good performance out of sand? Perhaps, but one of the nice things about tethers is that you can stack them in separate orbits. So if a material A offers you twice the characteristic velocity of material B, you can match that by building 2 separate tethers out of material B and boosting twice.
As we’ve seen, tethers that have a characteristic velocity much higher than their mission requires aren’t of much use, they’ll still need to operate near the mission dV. Momentum storage requirements also mean the mass ratio has to be 10-100x the payload, so more characteristic velocity doesn’t help much [17].
Worse, the crazy numbers we get for things like carbon nanotubes or graphene are on tiny, perfect materials that are unlikely to scale. The strength of a macroscale material with all its imperfections is 10-100 times lower than a perfect crystal. Additionally, most of the measurements on things like graphene are just wrong.
But let’s grant the gaudy numbers we see on wikipedia. Graphene gives us a characteristic velocity of 11.4 km/s. Pretty remarkable, but we could replicate that by stacking 3 or 4 tethers made out of materials we have today. Alternatively, tethers of a worse material can operate at higher speeds if you make them (much) larger.
So the stuff we have is already good enough, there are ways to get much more performance without better materials, and there isn’t a clear path to making materials at scale that are far stronger than what we have already. I think the decision over what material to use will really come down to little details like manufacturing scalability, ease of repair, material fatigue, predictability, and ability to withstand the harsh environment of space.
Single stage to orbit is silly
I’ll admit that after looking at exotic tether materials I spent time on another dead end: single-stage to orbit. Tethers and other contraptions have been offered as a way to use a single rocket to get to orbit. Ostensibly, this would save on costs because you only need to design and fuel a single rocket stage with no need for different engines, hot staging, etc.
But I realized this dream was impractical when I looked at at SpaceX’s superheavy booster. It only offers a delta V of roughly 1.5 km/s and an altitude of 100 km. At such a low speed and altitude, a tether would have to spin impractically fast to get a rocket to orbit. There are rockets capable of much higher performance, so why does Superheavy go so slow?
I realized that the engineers at SpaceX choose this for a reason. The faster a reusable booster goes, the more work you have to do to slow it down and land (and the more heat shielding you need) all of which add cost. In addition, rockets aren’t as efficient in the atmosphere and moving faster means more drag.
This means that the first stage should specialize in leaving the atmosphere at a minimally sufficient speed. From there you can use rockets optimized for space[18].
In the future, a different system such as catapaults, cannons, railguns, or hypersonic planes could perform the job of the first stage, but I’m not holding my breath. Building a bigger rocket is probably a better idea for the time being.
Ironically, none of these can actually get up to orbital velocity on their own, so you’d still have to put a rocket on the end regardless. It’s cheaper and simpler to use a rocket as the first stage and the fuel savings you get from these designs probably isn’t enough to outweigh their development cost and risk, especially since methalox fuel might get cheap.
[1] Though I could quickly change my mind if someone brought up a different consideration.
[2] You’ll notice that just getting to low earth orbit is hugely expensive, which is why it’s common to say that LEO is “halfway to anywhere”.
[3] You’ll also notice that the delta-V required to get to LEO is higher than orbital velocity. This is because you need additional fuel to overcome aerodynamic drag and gravity drag. Once in orbit, these are no longer a problem.
[4] Locating a tether in LEO is nice because you don’t have to worry as much about radiation or micrometeorites. Any new produced fragments produced from micrometeor collisions will also have orbital decay.
[5] The fuel costs for the first stage are only included implicity in the original delta V, modelling this completely would be more complex. I’m also not incuding costs of the material itself or the cost to spin up the tether. A BOTEC says that material cost will add 10-20% to the cost while spinning up will only add 1 or 2 additional launches (or perhaps some ion engines or solar sails). Including these costs would lead to smaller, slower tethers overall.
[6] Another wrinkle is that I’m assuming the tether is swinging an empty Starship. In reality, it would have a little fuel so that it can provide the last bit of dV. For now, we can assume that Starship provides all of its dV first and the tether boosts it afterwards.
[7] Under the constraint that the tether can’t boost us more than the desired dV.
[8] Since I’m just multiplying C/L by 0.1 this is the same as multiplying L by 10, so column 2 is the same as the glass column on the previous table.
[9] Small tethers make building large tethers cheaper by lowering the cost to reach higher orbits. So we can bootstrap to larger sizes.
[10] In fact, you could even spin the tether up near Earth and ship it to other planets. Once there, tethers can harvest gravitational energy to keep the whole network spinning.
[11] Tethers also “subsidize” moon mining and asteroid mining since they need falling mass to spin them up.
[12] Though you can get high performance by making many nanosized structures and putting them together. This is how carbon fiber works. The small size limits the number of defects a material can have, making things like monocrystalline whiskers and small glass fibers very strong.
[13] Glass might also perform better in space because there’s no water to weaken the fibers and fibers pulled in microgravity can be stronger than their counterparts on Earth.
[14] One option is for a glass tether to boost carbon fiber tether to higher orbit where safe from atomic oxygen.
[15] I imagine it rolling along the surface of the tether. The LN2 can also shield the material from atomic oxygen and radiation somewhat.
[16] These papers find glass fibers can hit 11-14 GPa tensile strength (3-3.5 km/s), though these bending tests might not be fair:
Strength of Optical Silica Fibers Measured in Liquid Nitrogen
Using the two-point bend technique to determine failure stress of pristine glass fibers
[17] Though there is probably a maximum size the tether can be to avoid danger to Earth.
[18] Though it sounds simpler to use a single stage for the whole flight, in reality building a single rocket to handle atmosphere and space is far more complex and less efficient.
Cool concept. I’m a bit puzzled by one thing though—presumably every time you use a tether, it slows down and drops to a lower orbit. How do you handle that? Is the idea that it’s so much more massive than the rockets its boosting that its slowdown is negligible? Or do we have to go spin it back up every so often?
One way to regain energy is to run the tether in reverse—drop something from a faster orbit back into the atmosphere, siphoning off some of its energy along the way. If every time you sent one spacecraft up another was lined up to come back down, that would save a lot of trouble.
But you’ll still need to do orbital corrections, offset atmospheric drag, and allow for imbalances, so yeah, it would seem like you still need a pretty beefy means of propulsion on this thing, which is oddly unmentioned for being key to the whole design.
Tethers can theoretically use more efficient propulsion because their thrust requirements are lower. The argon Hall effect thrusters on Starlink satellites have around 7x the specific impulse (fuel efficiency) of Starship engines while needing 7x the energy due to KE=mv^2/2 and having a tiny fraction of the thrust. This energy could come from a giant solar panel rather than the fuel, and every once in a while it could be refueled with a big tanker of liquid argon.
After looking into this a little more because it didn’t seem like ion thrusters would have the requisite thrust, it looks like this whitepaper from boeing explores using electrodynamic interaction with Earth’s magnetic field for thrust (see p. 34) - but they don’t find great numbers on how fast you can correct the orbit using that either, unfortunately.
This reminds me of a Brin short story which I think exactly discusses what you’re talking about: https://www.davidbrin.com/tankfarm.htm
The numbers for ion don’t seem crazy. To get the impulse to catch a 1,000 ton object every 2 weeks you would need 10,000 Starlink thrusters massing 21 tons, plus 42 MW of power, which is 14 hectares of solar panels at an average of 300 W/m^2. That’s only a couple dozen times the ISS.
This linked article goes into some options for that: https://toughsf.blogspot.com/2020/07/tethers-all-way.html
You can use the tether to catch payloads on the way down and boost the tether back up while also reducing the payload’s need for heat shielding
You can use more efficient engines with low thrust/weight ratios to reboost the tether
There are some propellent-free options that use the magnetic field to reboost the tether in exchange for energy (I’m unsure if the energy needs are practical or not)
If you had a way to catch them, I think you could just throw rocks down the gravity well and catch them for a boost too.
you can recover lost momentum by decelerating things to land. OP mentions that briefly
If every launch returns and lands on earth, that would recover some but not all lost momentum, because of fuel spent on the trip. it’s probably more complicted than that though
Yeah, my overall sense is that using falling mass to spin the tether back up is the most practical. But solar sails and ion drives might contribute too, these are just much slower which hurts launch cadence and costs.
The fact that you need a regular supply of falling mass from e.g. the moon is yet another reason why tethers need a mature space industry to become viable!
I upvoted this post, but I do have a few comments.
The matrix holding the fibers together is generally going to be more prone to degradation. Glass fibers have good compressive strength, but carbon fiber would be better here.
Maintaining orbit is one of the key issues. You probably need ion thusters and solar panels. I don’t think electrodynamic tethers actually work, because of friction vs conductivity.
At these scales and speeds, you can’t just think of “solid things” as being rigid. Speed of sound in solid materials becomes a major issue. When something attaches to the tether, there’s a wave of increased tension and stretching that propagates through the tether and sets up a vibration. This is a fatal problem for some tether variants.
The projectile needs to reliably connect to the tether. Docking in space is usually slow and doesn’t involve large forces, and it’s still not easy, but here it needs to be done quickly and establish a strong connection. Here, you could just have a hook grab a perpendicular rope, but if you don’t have any contingency plans, well, “dock or die” isn’t very appealing. Especially if it happens multiple times.
Yes, micrometeoroids are an issue. Even if there aren’t many, the tether might need to be robust to small impacts. A low orbit reduces that risk (but doesn’t eliminate it) but a tether would also have relatively high drag; the surface area per mass is higher than eg the ISS.
The main thing people want to do with rockets has been put satellites in orbit. I don’t see a reason to expect that to change anytime soon.
People have thought of all this decades ago. Maybe check out “LEOBiblio” or something.
If the thing you want to accelerate with the tether is cheap but heavy to LEO (e.g. “big dumb tank of fuel”), it might be a reasonable risk to take. Then missions which have more valuable payload like humans can take the safer approach of strapping them to a somewhat larger pile of explosions, and things which need a lot of delta V can get up to LEO with very little fuel left, dock with one of the big dumb tanks of fuel, and then refuel at that point.
Source: I have played a bunch of Kerbal Space Program, and if it works in KSP it will definitely work in real life with no complications.
Thanks for the comments! Going point-by-point:
I think both fiberglass and carbon fiber use organic epoxy that’s prone to UV (and atomic oxygen) degradation? One solution is to avoid epoxy entirely using parallel strands or something like a Hoytether. The other option is to remove old epoxy and reapply over time, if its economical vs just letting the tether degrade.
I worry that low-thrust options like ion engines and sails could be too expensive vs catching falling mass, but I could be convinced either way!
Yeah, some form of vibration damping will be important, I glossed over this. Bending modes are particularly a problem for glass. Though I would guess that vibrations wouldn’t make the force along the tether any higher?
Catching the projectile is a key engineering challenge here! One that I probably can’t solve from my armchair. As for missing the catch, I guess I don’t see this as a huge issue? If the rocket can re-land, missing the catch means that the only loss is fuel. Though colliding with the tether would be a big problem.
Yeah I think low orbits are too challenging for tethers, so they’re definitely going to be at risk of micrometeorite impacts. I see this as a key role of the “safety factor”. Tether should be robust to ~10-50% of fibers being damaged, and there should be a way to replace/repair them as well.
Right, though tethers can’t help satellites get to LEO, they can help them get to higher orbits which seems useful. But the real value-add comes when you want to get to the Moon and beyond.
Good to know! I would love to see more experiments on glass fibers pulled in space, small-scale catches, and data on what kinds of defects form on these materials in orbit.
Thanks for the great article. I think that the idea of asking “how many re-uses does this thing give before wearing out” is a great way of focusing the mind away from the super fancy materials. I love the idea of all these spaceships doing a “strip the willow” type dance with one another.
In terms of dropping things from orbit to re-spool your tethers. One component of that might be old/redundant/broken satellites. Its kind of like fuel recycling, the fuel that went into accelerating a satellite 20 years ago can be re-extracted (at some efficiency) by transferring that kinetic energy to something new that is not obsolete.
Would it be possible to redirect an asteroid into earth orbit; drop some of the highly elastic strings off of that; get delta V for free from the existing potential energies in the solar system.
One problem is what you do with that thing once you’ve used enough potential energy that it’s orbit is touching atmosphere and decaying rapidly. You’d need to blow it up with good timing so you don’t leave fragments in orbit but you also don’t leave large enough chunks to not burn in atmosphere and cause tsunamis when it hits the ocean.
You can absolutely harvest potential energy from the solar system to spin up tethers. ToughSF has some good posts on this:
https://toughsf.blogspot.com/2018/06/inter-orbital-kinetic-energy-exchanges.html https://toughsf.blogspot.com/2020/07/tethers-all-way.html
Ideally your tether is going to constantly adjust its orbit so it says far away from the atmosphere, but for fun I did a calculation of what would happen if a 10K tonne tether (suitable for boosting 100 tonne payloads) fell to the Earth. Apparently it just breaks up in the atmosphere and produces very little damage. More discussion here:
https://www.reddit.com/r/slatestarcodex/comments/1eqe48g/comment/liaouaa/?utm_source=share&utm_medium=web3x&utm_name=web3xcss&utm_term=1&utm_content=share_button
I was proposing something different.
Are lunar tethers feasible? I don’t think a LLO(Low Lunar Orbit) is really doable except with really low speeds, which would probably render any tethering attempt inefficient. How does earth tethering compare to standard lunar launches, then, in terms of fuel requirements?
Lunar tethers actually look like they will be feasible sooner than Earth tethers! The lack of atmosphere, micrometeorites, and lower gravity (g) makes them scale better.
In fact, you can even put a small tether system on the lunar surface to catapult payloads to orbit: https://splittinginfinity.substack.com/p/should-we-get-material-from-the-moon
Whether tethers are useful on the moon depends on the mission you want to do. Like you point out, low delta-V missions probably don’t need a tether when rockets work just fine. But if you want to take lunar material to low earth orbit or send it to Mars, a lunar tether is a great option.
The near-term application I’m most excited about is liquid oxygen. Getting oxygen from the moon to LEO requires less delta V than going from the Earth to LEO! Regolith is ~45% oxygen by mass and a fully-fueled Starship is 80% LOX by mass. So refueling ships in LEO with lunar O2 could be viable.
Even better, the falling lunar oxygen can spin up a tether in LEO which can use that momentum to boost a Starship to other parts of the solar system.
Very interesting. Love the idea of torturing mathematicians by making them calculate these crazy-precise orbits, but I guess machines can do most of that(a shame). How often could a tether actually be used for resource launches though? Assuming only one tether is in operation, would its orbital cycles be quick enough to transport materials consistently for a large lunar mining operation? Also, I’m not super informed on lunar space debris, but I imagine that would pile up quickly as lunar space operations began. I think most debris here on Earth would be outside the domain of tethers, but I can’t find many numbers on the hypothetical orbits of lunar debris. I assume, though, that it would be very different due to the lack of atmosphere to burn up debris and the differing gravity. I figure you could make a tether capable of withstanding this, but how would orbits be calculated and rockets properly tethered with interference? Assuming that this is an actual problem.
Bit of a tangent, but I think space debris is one of my favorite hypothetical future problems, because it has a very similar and equally interesting set of fields which it intertwines with as climate change, while also not being a real problem I have to worry about killing me(like climate change)
The launch cadence is an interesting topic that I haven’t had a chance to tackle. The rotational frequency limits how often you can boost stuff.
Since time is money you would want a shorter and faster tether, but a shorter time of rotation means that your time window to dock with the tether is smaller, so there’s an optimization problem there as well.
It’s a little easier when you’ve got catapults on the moon’s surface. You can have two running side by side and transfer energy between them electrically. So load up catapult #1, spin it up, launch the payload, and then transfer the remaining energy to catapult #2. You can get much higher launch cadence that way.
I think there might be a typo?
Oops yes, that should read “Getting oxygen from the moon to LEO requires less delta V than going from the Earth to LEO!”. I edited the original comment.
