I’ve been working in computational bio for a couple
months now and I’ve been learning a lot. There’s still a ton I don’t
know, but I’m currently at a stage where I’ve put some pieces together
while still remembering what it was like not to understand them, which
is often a good time to try to write introductory stuff. Trying to
explain things is also a good way of making sure I understand them
myself. So, here’s an dump of what I’ve been learning:
The biological world primarily stores information with nucleic
acids. These are series of nucleotides, often called
bases: A,
C, G, and T. For example, a
strand of nucleotides could look like:
GGCTGAGACAGTGCCCAGATCGTTACACCATTCGT
The two main kinds of nucleic acid are DNA and RNA. They differ in a
few ways, but from a computational perspective they’re very similar.
Physical RNA will have U instead of T, though
in sequencing data you’ll often see it with with T anyway.
Each base has a complement:
A bonds with T, and G with C. A nucleic acid that comprises two
bonded strands is called double stranded. Each base in one
strand will be bonded to its complement:
This is the famous double
helix and makes for a more stable structure than single
stranded nucleic acid.
Going from a physical nucleic acid to a sequence on a computer
is sequencing, and the reverse is synthesis. I’m only
going to talk about the former; I haven’t learned much about the
latter.
The most common sequencing method today is Next
Generation Sequencing, commonly called Illumina
sequencing after the main vendor. Bases are dyed and the machine
reads their colors. The output of sequencing is a large number of
short reads. Each read is a sequence of 50-300 bases, usually
around 150. In setting up the sequencing run you choose how many
bases to read, and different applications will make the most sense
with different lengths. Accuracy drops off as you read farther along
the strand. Note the lengths we’re talking about are way less than
the length of a full nucleic acid, which is generally at least
thousands of bases. Not getting the full picture is a big downside of
this kind of sequencing.
The GitHub link is helpful for getting metadata (what does each sample
represent?) and understanding how they processed it (what tools did
they use and how?), but for now we’re looking for sequencing data. The
accession number is “PRJNA729801”, and while we could click through
and download it from the NCBI, the user interface on the European
mirror (European Nucleotide Archive) is much better. We go to
their landing page
and enter the accession number:

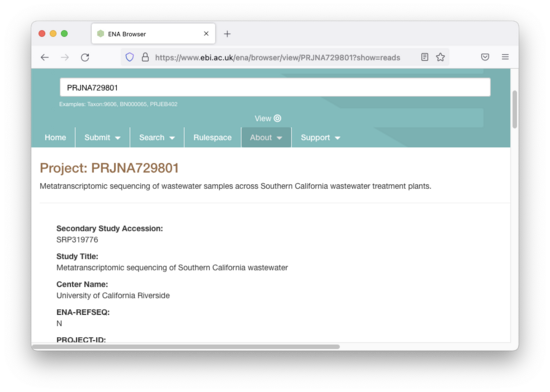

This takes us to a page that describes the data:
We want to sanity check the title to make sure we didn’t end up with
the wrong data set, and “Metatranscriptomic sequencing of Southern
California wastewater” sounds about right.
Scrolling down there are links:
We could download all of this data, but it would be about 80GB
compressed. For now, let’s just download a single
fastq.gz file, at ~150MB: SRR14530724_1.fastq.gz.
These files are generally both very large and very repetitive, so
they’re a natural candidate for compression. The most common option is
gzip, and that’s what they’ve used here. Let’s start by decompressing
it:
This file format is called
FASTQ and right now we’re looking at
a single read from the file. The line starting with “@” gives the id
for this sequence, then there’s the sequence itself. A line starting
with “+” indicates the end of the sequence, and then there’s the
quality score which we’ll talk about in a bit.
I can see that there are 2.7M reads in this file:
$ grep -c ^@ SRR14530724_1.fastq
2737872
You’ll notice that this read ends in a long string of ’G’s, and this
is actually very common in the data:
$ grep -c ‘GGGGGGGG$’ SRR14530724_1.fastq
840839 # 31% of reads
This is called Poly-G and comes from the particular chemistry
this sequencer uses. It identifies bases by dying A and T one color
(green), and A and C a different color (red). This means A will be
yellow (green+red light), T will be green, C will be red, and G will
be black (no light). The sequencer can’t distinguish “there are no
bases” from “there are bases but they’re all G and didn’t pick up any
dye”. When a sequence is shorter than expected it gets a Poly-G tail.
You generally trim these tails after sequencing as part of a general
quality control step; we’ll just do sed 's/GGGGGGGG*$//'
for now.
The sequencer has some information about how confident it is:
sometimes it sees a single clear color, other times there’s a bit of
another color mixed in. This is what the quality
score encodes. It’s the same length as the sequence, and they
correspond character for character.
You convert the letter to a numeric value by taking the ASCII value of
the character and subtracting 33, the ASCII value of the first
non-whitespace printable character (‘!’). To convert
this to an error probability you multiply by −0.1, take that power of
ten. For example, ‘F’ is ASCII 70, and 10^(-.1*(70-33))
is 0.02% chance of error, or a 99.98% chance of being accurate. An
increase of ten ASCII positions indicates a 10x higher accuracy.
This sequencer uses only a few different quality values:
Phred character
Numeric Value
Accuracy
F
37
99.98%
:
25
99.7%
,
11
92%
#
2
37%
Looking at this one sequencing run I see:
$ cat SRR14530724_1.fastq
| grep FF # quality line only
| sed ‘s/\(.\)/\1\n/g’ # one char per line
| grep . # ignore whitespace
| head -n 10000000 # sample the data
| sort | uniq -c # count types
257 # # ~0%
411192 , # 4%
506844 : # 5%
9081707 F # 91%
Let’s pull out just a short section of the sequence and its
corresponding quality scores:
CTGTCTCT
F:F:FFFF
This is saying it’s 99.7% confident about those first two “T”s, and
99.98% confident about the other calls.
In cases where you don’t care about quality scores you’ll often use
the “FASTA” file format instead:
The “>” marks the beginning of a read, and everything after it is
the id for that sequence. For example, the first read in this file is
“SRR14530903.1 1/2”. All lines until the next “>” are the sequence
for that read.
You’ll notice that some of the files end in _1.fastq.gz
and some end in _2.fastq.gz, and each pair has the same
number of reads:
This is because this particular data set used
paired-end
sequencing. The idea is you simultaneously sequence a section at
the beginning (the
forward read) and a section at the end (the
reverse read) of each fragment, putting them in the
_1 and
_2 files respectively. There’s an
unsequenced gap between them, and you know about how long it is based
on how you chopped up your fragments before sequencing. This is
useful in figuring out how these fragments can be
assembled
into full genetic sequences.
All of this so far has been describing short Illumina-style reads, but
there’s another kind of sequencing that’s becoming increasingly
popular, called Nanopore
sequencing. The nucleic acid is fed through a tiny hole in a chip,
and different sequences of bases will generate different electrical
signals as they pass through. Converting these signals to a string of
ACTG and producing a FASTQ file is basecalling and you
generally use a neural network running on a GPU. This produces much
longer reads than Illumina sequencing, because you can feed through an
arbitrarily long nucleic acid. Read of tens of thousands of bases are
common, and reads in the millions are possible. Long reads are
helpful for many things, especially if you’re working with a mixture
of nucleic acids pulled from a natural environment like skin, saliva,
wastewater, etc. (metagenomics, metatranscriptomics).
At this point Nanopore is approximately cost competitive with
Illumina, but still has a much higher error rate.
Let’s stop things here, since this is long enough already. Other
things I might write about at some point: assembly, qPCR, amplicon
sequencing, reverse complements, tooling, k-mers. Happy to answer questions!
