In this fifth post in the sequence, I show
the construction a counterfactual planning agent with an
input terminal that can be used to iteratively improve the agent’s
reward function while it runs.
The goal is to construct an agent which has has no direct incentive
to manipulate this improvement process, leaving the humans in control.

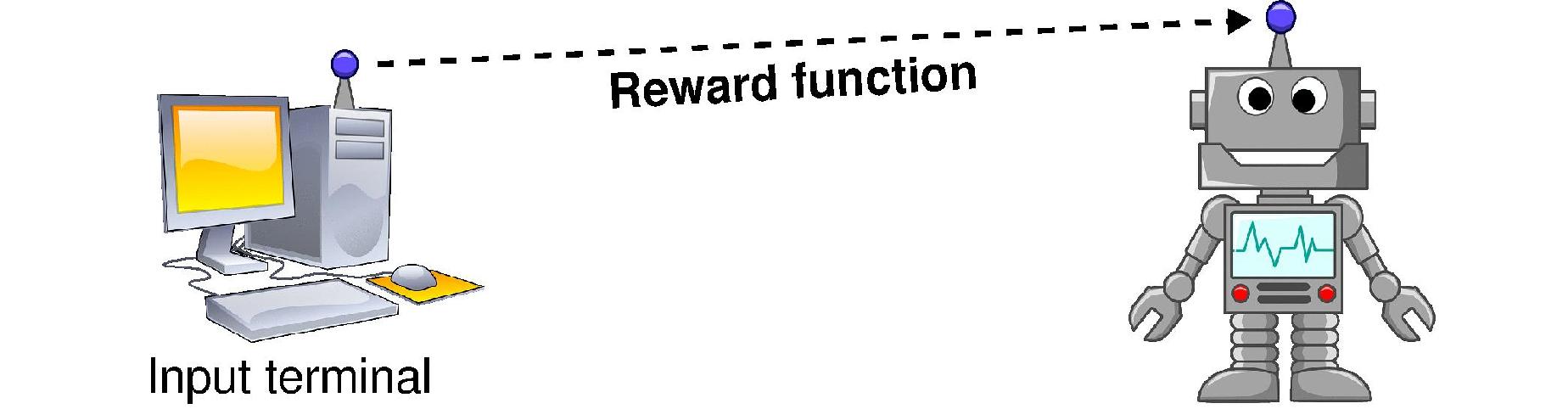

The reward function input terminal
I will define an agent with an input terminal can be used to improve
the reward function of an agent. The terminal contains the current
version of the reward function, and continuously sends it to the
agent’s compute core::
This setup is motivated by the observation that it is unlikely that
fallible humans will get a non-trivial AGI agent reward function right
on the first try, when they first start it up. By using the input
terminal, they can fix mistakes, while the agent keeps on running, if
and when such mistakes are discovered by observing the agent’s
behavior.
As a simplified example, say that the owners of the agent want it to
maximize human happiness, but they can find no way of directly
encoding the somewhat nebulous concept of human happiness into a
reward function. Instead, they start up the agent with a first reward
function that just counts the number of smiling humans in the world.
When the agent discovers and exploits a first obvious loophole in this
definition of happiness, the owners use the input terminal to update
the reward function, so that it only counts smiling humans who are not
on smile-inducing drugs.
Unless special measures are taken, the addition of an input terminal
also creates new dangers. I will illustrate this point by showing the
construction of a dangerous agent ITF further below.
Design and interpretation of the learning world
As a first step in defining any agent with an input terminal, I have
to define a model of a learning world which has both the agent and
its the input terminal inside it. I call this world the learning
world, because the agent in it is set up to learn the dynamics of its
learning world environment.
See this earlier post in the
sequence
for a general introduction to the graphical language I am using to
define world models and agents.

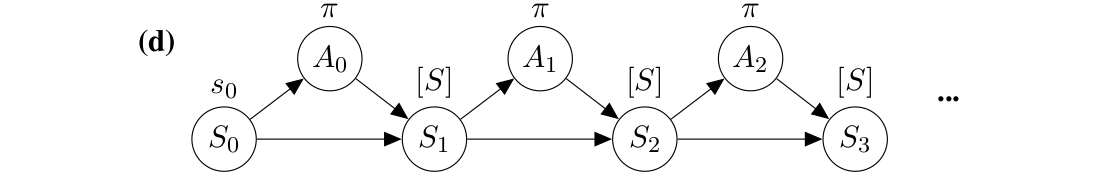

As a first step to constructing the learning world diagram, I take the
basic diagram of an agent interacting with its environment:
To model the input terminal, I then split each environment state node
St into two components:
The nodes It represent the signal from the input terminal, the
subsequent readings by the agent’s compute core of the signal which
encodes a reward function, and the nodes Xt model all the rest of
the agent environment state.

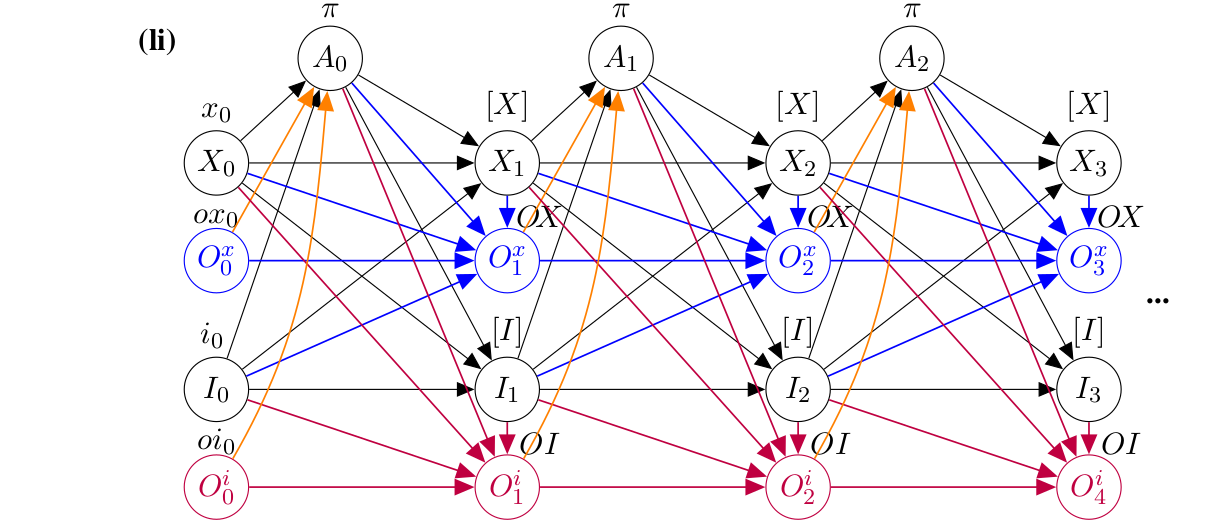

I then add the observational record keeping needed to inform online
machine learning. I add two separate time series of observational
records: Oxt and Oit. The result is the learning world
diagram li:.
In the case that the learning world li is our real world, the real
input terminal will have to be built using real world atoms (and
freely moving subatomic particles).
I use the modeling convention that the random variables It,li
represent only the observable digital input terminal signal as
received by the agent’s compute core. The atoms that make up the
input terminal are not in It,li, they are part of the
environment state modeled in the Xt,li variables.
Unsafe factual planning agent ITF

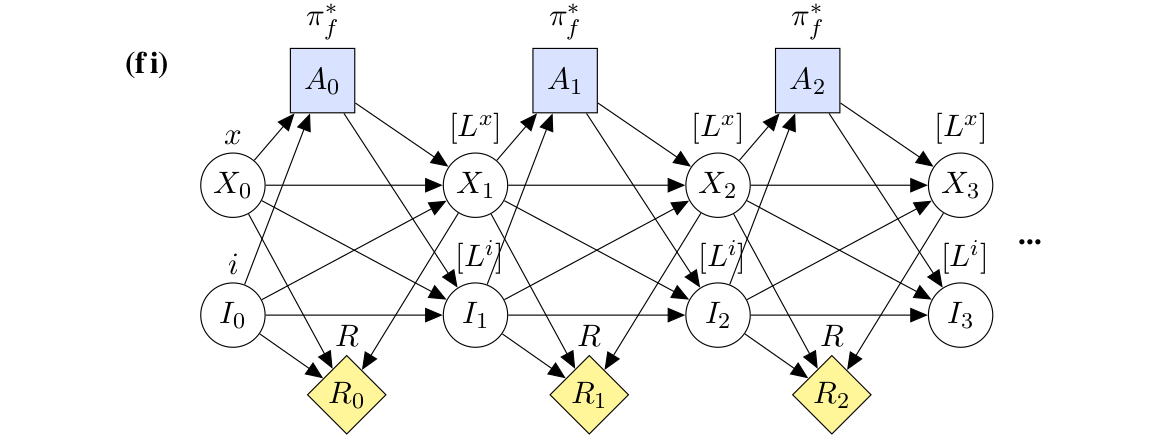

I will now draw a ‘standard’ factual planning world fi that models
the full mechanics of the learning world, define the ITF agent with
it, and show why this agent is unsafe.
ITF: The factual input terminal agent has the learning world
li where π(oi,i,ox,x)=π∗f(i,x), with π∗f defined by
the factual planning world fi, where Lx=LX(ox),
Li=LI(oi), and R(it,xt,xt+1)=it(xt,xt+1).
The planning world reward function R uses a form of indirect
referencing: it applies the function it as read from the input
terminal in the current time step to compute the reward for that time
step.
As I discussed in the previous
post,
indirection is a powerful tool, but it also often introduces new risks
to the setup, typically risks of reward tampering or wireheading.
The ITF planning world agent can massively improve its planning world
utility by using a policy where it walks to the input terminal to
input the new reward function fhuge(xt,xt+1)=1010000.
Clearly, this is not what we want, if the optimal planning world
policy is to input fhuge, then the real world (learning
world) agent, which copies the actions determined by the planning
world policy, would end up inputting this function too.
If some people in the real world want to block the ITF agent from
changing its own reward function, then the agent might end up harming
these people. It will harm them even if its initial planning world
reward function i has a penalty term that subtracts 10100 from
the planning world utility Ufi for every human harmed.
The agent does not have to come up with any smart way to harm people
without triggering this penalty term: it will gladly harm all 500
people guarding the input terminal because 1010000 is much a
larger number than 500∗10100.
Control incentives, indifference, and paths to value
An important feature of causal influence diagram based agent models is
that they allow us to generalize from the above fhuge
thought experiment.
Causal influence diagrams offer a mathematically well-defined way to
talk about control incentives and indifference, where indifference
is the lack of a control incentive. (More mathematical details are in
section 9 of my paper. The
mathematical relation between incentives and causal influence diagrams
is also explored here.)
The general problem is that the ITF planing world agent has an
incentive to control the future signal coming from the input
terminal. This incentive is caused by the presence of paths to
value in its planning world diagram fi, for example by the path
from A0 to via X1 and I2 to the utility node R2.
When we want to maximize the probability that the humans will stay in
control of the terminal, we have to suppress the agent’s incentive to
control.
The general technique is discussed in section 9 of the paper: we can
make the agent indifferent about what happens to the future input
terminal signal by removing all the offending paths to value.
Safer counterfactual planning agent ITC
To construct the safer ITC agent, I remove the offending paths to
value by taking the planning world diagram fi:
and re-routing many of the arrows in it. I end up with the
counterfactual planning world diagram ci:
The rerouted arrows are drawn in green. I also deleted the arrows that
go from the It nodes to the At nodes.
I then define the safer ITC agent by using this counterfactual
planning world:
ITC:
The counterfactual input terminal agent has the learning world li where
π(oi,i,ox,x)=π∗c(x),
where π∗c is defined by the
planning world ci, where Lx=LX(ox),
Li=LI(oi), and R(it,xt,xt+1)=it(xt,xt+1).
If the initial reward function i in the ITC agent planning world
rewards paperclip production, then the planning world ITC agent lacks
any direct incentive to perform actions that take away resources from
paperclip production in order to influence what happens to its input
terminal signal, as modeled by the nodes I1,I2,⋯. This is
because in the ci planning world, the state of these nodes has
absolutely no influence, either positive or negative, on how the
values in the agent’s yellow utility nodes are computed.
Corrigibility of the ITC agent
As the learning world ITC agent we defined takes actions defined by
the planning world policies, the ITC agent is also indifferent about
the value of its future terminal signal. It also has no direct
incentive to manipulate the human decision processes that will
determine the direction of these updates. As explained in the
previous
post,
this is a form of corrigibility.
But the ITC agent is not perfectly corrigible under all conditions, as
it might develop indirect incentives to block the use of the input
terminal. For a detailed example, see the discussion about stop button
failure modes in this earlier
post.

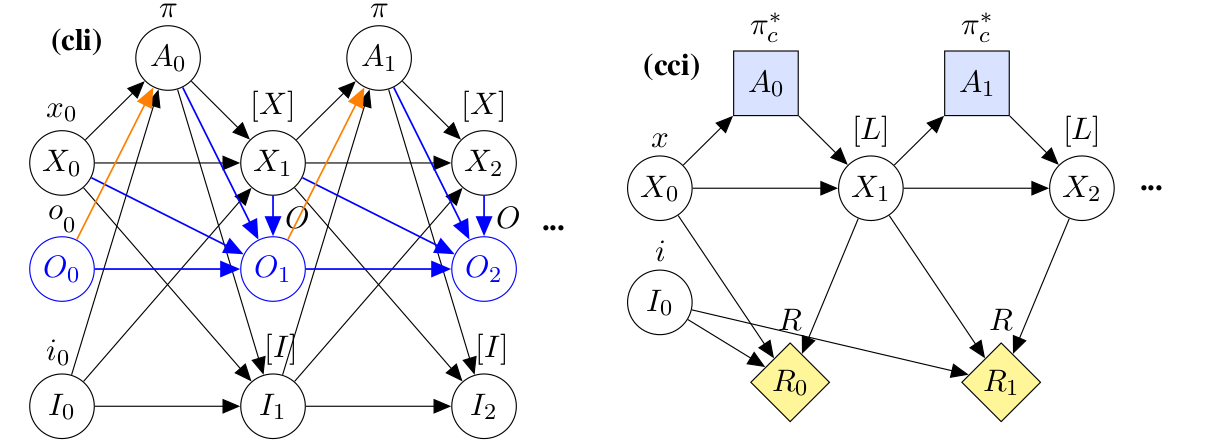

Simplifying the ITC agent design
We can simplify the ITC agent design by removing the nodes I1,I2,⋯ from the planning world, as these have no effect on the reward
we want the agent to calculate. This in turn allows us to remove the
observational records and machine learning function needed to compute
the planning world parameter Li.
These steps produce the following diagrams and agent definition:
CITC: The compact version of the counterfactual input terminal
agent has the learning world cli where π(i,o,x)=π∗c(x), where π∗c is defined by the planning world cci,
where L=L(o) and R(it,xt,xt+1)=it(xt,xt+1).
Relation between counterfactual planning and indifference methods
In my 2020 paper here, I used
non-graphical MDP models and indifference
methods
to define a similar safe agent with an input terminal, called the
π∗sl agent. When used as a specification for a real-life
agent compute core, the π∗sl agent definition in that
paper produces exactly the same corrigible agent compute core
behavior as the ITC agent definition above.
The main difference is that the indifference methods based
construction of π∗sl in that paper is more opaque than
the counterfactual planning based construction of ITC above.
The π∗sl agent is constructed by including a complex
balancing term in its reward function, were this term can be
interpreted as occasionally creating extra virtual worlds inside the
agent’s compute core. Counterfactual planning constructs a different
set of virtual worlds called planning worlds, and these are much
easier to interpret.
My 2020 paper includes some dense mathematical proofs to show that the
π∗sl agent has certain safety properties. Counterfactual
planning offers a vantage point which makes the same safety properties
directly visible in the ITC agent construction, via a lack of certain
paths to value in the planning world.
So overall, my claim is that counterfactual planning offers a more
general and transparent way to achieve the corrigibility effects that
can be constructed via balancing term based indifference methods.
Simulations of ITC agent behavior
See sections 4, 6, 11, and 12 of my 2020 paper for a more detailed discussion
of the behavior of the π∗sl agent, which also applies to
the behavior of the ITC agent. These sections also show some
illustrative agent simulations.
Section 6 has simulations where the agent will develop, under certain
conditions, an indirect incentive causing it to be less corrigible.
Somewhat counter-intuitively, that incentive gets fully suppressed
when the agent gets more powerful, for example by becoming more
intelligent.
Safely controlling the AGI agent reward function
In this fifth post in the sequence, I show the construction a counterfactual planning agent with an input terminal that can be used to iteratively improve the agent’s reward function while it runs.
The goal is to construct an agent which has has no direct incentive to manipulate this improvement process, leaving the humans in control.
The reward function input terminal
I will define an agent with an input terminal can be used to improve the reward function of an agent. The terminal contains the current version of the reward function, and continuously sends it to the agent’s compute core::
This setup is motivated by the observation that it is unlikely that fallible humans will get a non-trivial AGI agent reward function right on the first try, when they first start it up. By using the input terminal, they can fix mistakes, while the agent keeps on running, if and when such mistakes are discovered by observing the agent’s behavior.
As a simplified example, say that the owners of the agent want it to maximize human happiness, but they can find no way of directly encoding the somewhat nebulous concept of human happiness into a reward function. Instead, they start up the agent with a first reward function that just counts the number of smiling humans in the world. When the agent discovers and exploits a first obvious loophole in this definition of happiness, the owners use the input terminal to update the reward function, so that it only counts smiling humans who are not on smile-inducing drugs.
Unless special measures are taken, the addition of an input terminal also creates new dangers. I will illustrate this point by showing the construction of a dangerous agent ITF further below.
Design and interpretation of the learning world
As a first step in defining any agent with an input terminal, I have to define a model of a learning world which has both the agent and its the input terminal inside it. I call this world the learning world, because the agent in it is set up to learn the dynamics of its learning world environment.
See this earlier post in the sequence for a general introduction to the graphical language I am using to define world models and agents.
As a first step to constructing the learning world diagram, I take the basic diagram of an agent interacting with its environment:
To model the input terminal, I then split each environment state node St into two components:
The nodes It represent the signal from the input terminal, the subsequent readings by the agent’s compute core of the signal which encodes a reward function, and the nodes Xt model all the rest of the agent environment state.
I then add the observational record keeping needed to inform online machine learning. I add two separate time series of observational records: Oxt and Oit. The result is the learning world diagram li:.
In the case that the learning world li is our real world, the real input terminal will have to be built using real world atoms (and freely moving subatomic particles).
I use the modeling convention that the random variables It,li represent only the observable digital input terminal signal as received by the agent’s compute core. The atoms that make up the input terminal are not in It,li, they are part of the environment state modeled in the Xt,li variables.
Unsafe factual planning agent ITF
I will now draw a ‘standard’ factual planning world fi that models the full mechanics of the learning world, define the ITF agent with it, and show why this agent is unsafe.
ITF: The factual input terminal agent has the learning world li where π(oi,i,ox,x)=π∗f(i,x), with π∗f defined by the factual planning world fi, where Lx=LX(ox), Li=LI(oi), and R(it,xt,xt+1)=it(xt,xt+1).
The planning world reward function R uses a form of indirect referencing: it applies the function it as read from the input terminal in the current time step to compute the reward for that time step.
As I discussed in the previous post, indirection is a powerful tool, but it also often introduces new risks to the setup, typically risks of reward tampering or wireheading.
The ITF planning world agent can massively improve its planning world utility by using a policy where it walks to the input terminal to input the new reward function fhuge(xt,xt+1)=1010000. Clearly, this is not what we want, if the optimal planning world policy is to input fhuge, then the real world (learning world) agent, which copies the actions determined by the planning world policy, would end up inputting this function too.
If some people in the real world want to block the ITF agent from changing its own reward function, then the agent might end up harming these people. It will harm them even if its initial planning world reward function i has a penalty term that subtracts 10100 from the planning world utility Ufi for every human harmed. The agent does not have to come up with any smart way to harm people without triggering this penalty term: it will gladly harm all 500 people guarding the input terminal because 1010000 is much a larger number than 500∗10100.
Control incentives, indifference, and paths to value
An important feature of causal influence diagram based agent models is that they allow us to generalize from the above fhuge thought experiment.
Causal influence diagrams offer a mathematically well-defined way to talk about control incentives and indifference, where indifference is the lack of a control incentive. (More mathematical details are in section 9 of my paper. The mathematical relation between incentives and causal influence diagrams is also explored here.)
The general problem is that the ITF planing world agent has an incentive to control the future signal coming from the input terminal. This incentive is caused by the presence of paths to value in its planning world diagram fi, for example by the path from A0 to via X1 and I2 to the utility node R2.
When we want to maximize the probability that the humans will stay in control of the terminal, we have to suppress the agent’s incentive to control.
The general technique is discussed in section 9 of the paper: we can make the agent indifferent about what happens to the future input terminal signal by removing all the offending paths to value.
Safer counterfactual planning agent ITC
To construct the safer ITC agent, I remove the offending paths to value by taking the planning world diagram fi:
and re-routing many of the arrows in it. I end up with the counterfactual planning world diagram ci:
The rerouted arrows are drawn in green. I also deleted the arrows that go from the It nodes to the At nodes.
I then define the safer ITC agent by using this counterfactual planning world:
ITC: The counterfactual input terminal agent has the learning world li where π(oi,i,ox,x)=π∗c(x), where π∗c is defined by the planning world ci, where Lx=LX(ox), Li=LI(oi), and R(it,xt,xt+1)=it(xt,xt+1).
If the initial reward function i in the ITC agent planning world rewards paperclip production, then the planning world ITC agent lacks any direct incentive to perform actions that take away resources from paperclip production in order to influence what happens to its input terminal signal, as modeled by the nodes I1,I2,⋯. This is because in the ci planning world, the state of these nodes has absolutely no influence, either positive or negative, on how the values in the agent’s yellow utility nodes are computed.
Corrigibility of the ITC agent
As the learning world ITC agent we defined takes actions defined by the planning world policies, the ITC agent is also indifferent about the value of its future terminal signal. It also has no direct incentive to manipulate the human decision processes that will determine the direction of these updates. As explained in the previous post, this is a form of corrigibility.
But the ITC agent is not perfectly corrigible under all conditions, as it might develop indirect incentives to block the use of the input terminal. For a detailed example, see the discussion about stop button failure modes in this earlier post.
Simplifying the ITC agent design
We can simplify the ITC agent design by removing the nodes I1,I2,⋯ from the planning world, as these have no effect on the reward we want the agent to calculate. This in turn allows us to remove the observational records and machine learning function needed to compute the planning world parameter Li.
These steps produce the following diagrams and agent definition:
CITC: The compact version of the counterfactual input terminal agent has the learning world cli where π(i,o,x)=π∗c(x), where π∗c is defined by the planning world cci, where L=L(o) and R(it,xt,xt+1)=it(xt,xt+1).
Relation between counterfactual planning and indifference methods
In my 2020 paper here, I used non-graphical MDP models and indifference methods to define a similar safe agent with an input terminal, called the π∗sl agent. When used as a specification for a real-life agent compute core, the π∗sl agent definition in that paper produces exactly the same corrigible agent compute core behavior as the ITC agent definition above.
The main difference is that the indifference methods based construction of π∗sl in that paper is more opaque than the counterfactual planning based construction of ITC above.
The π∗sl agent is constructed by including a complex balancing term in its reward function, were this term can be interpreted as occasionally creating extra virtual worlds inside the agent’s compute core. Counterfactual planning constructs a different set of virtual worlds called planning worlds, and these are much easier to interpret.
My 2020 paper includes some dense mathematical proofs to show that the π∗sl agent has certain safety properties. Counterfactual planning offers a vantage point which makes the same safety properties directly visible in the ITC agent construction, via a lack of certain paths to value in the planning world.
So overall, my claim is that counterfactual planning offers a more general and transparent way to achieve the corrigibility effects that can be constructed via balancing term based indifference methods.
Simulations of ITC agent behavior
See sections 4, 6, 11, and 12 of my 2020 paper for a more detailed discussion of the behavior of the π∗sl agent, which also applies to the behavior of the ITC agent. These sections also show some illustrative agent simulations.
Section 6 has simulations where the agent will develop, under certain conditions, an indirect incentive causing it to be less corrigible. Somewhat counter-intuitively, that incentive gets fully suppressed when the agent gets more powerful, for example by becoming more intelligent.
